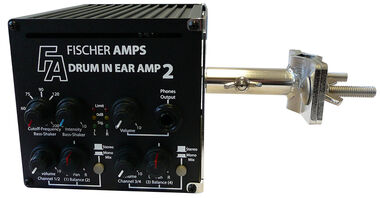

Fischer Amps Drum In-Ear Amp 2

Save $ 90.75

Price:
Sale price$ 483.75 USD Regular price$ 574.50 USD

Description

The Drum In Ear Amp 2 is specially designed to supply in-ear systems of drummers.
When using in-ear monitoring, drummers in particular require additional support in the lower end which allows them to feel the beat of the bass drum. Using a low frequency transducer which is mounted at the drummer throne enables this feeling without noise.

The Drum In Ear Amp is a mix between headphone amp and shaker amp and can be combined with various transducers (Bass Shaker or ButtKicker). The mount at the amplifier casing enables fixing the unit at the drum set for comfortable operation.

The amplifier of the Drum In Ear Amp 2 is switchable with maximum 250 watts.

The Drum In Ear Amp 2 can also power the high-output ButtKicker LFE. When switching over the amplifier power to 65 watts, it can also operate the bass shaker Bass Pump III.

Specifications:

Amplifier:
Dimensions without mount L x W x H : 185 x 120 x 110mm
Weight: 1.7kg
Input Connectors: 4 x Neutrik–XLR/Jack 3-pole, Combo Plug

Output Connectors:
Bass-Shaker Out: 1 x Speakon/Jack Combo Plug mono
Headphone Out: 1 x 1/4" (6.3mm) jack stereo

Frequency Response:
Headphone output 20Hz – 20kHz +/- 2dB,
Bass shaker 20Hz – 200Hz (adjustable)

Min. impedance of earphone: 12ohms per side

Input impedance channel 1-4: 10kOhms
Max. input sensitivity balanced: channel 1-2: +10dBu, channel 3-4: +10dBu

Max. Output Power connected to 16ohms headphone output: 150 mW per channel
Max. Output Power connected to 4ohms bass shaker amplifier: low level = 65W RMS, high level = 250W RMS

Power supply: 115/30VAC 50/60Hz (switchable)
max. input power: aprox. 280W
Power fuse: 1.25 AT with 230V power supply, 2.5 AT with 115V
